Listed below are some of our past projects. Click on the tabs below to see projects from each specified category.

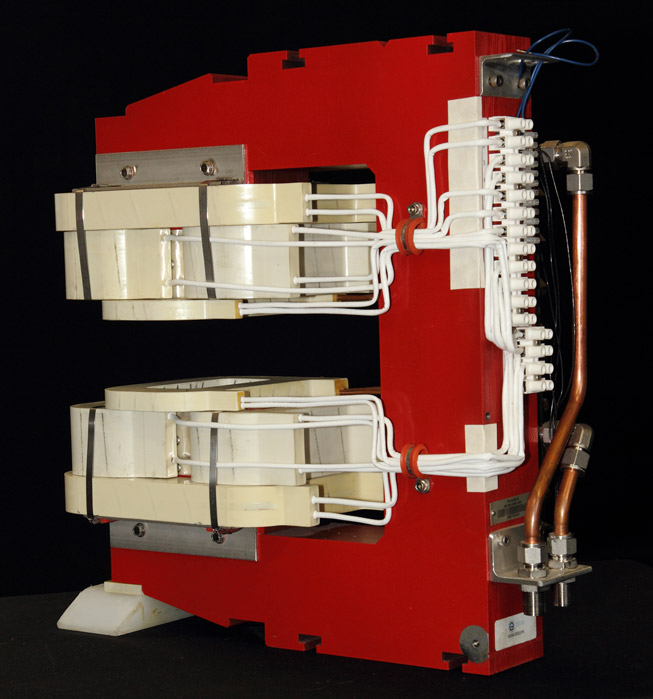

dipole magnet for particle beam direction

1. Research Facility Magnet

This is a dipole magnet for a National Laboratory used to correct particle beam direction. Magnet coils are water cooled and entire magnet was manufactured and assembled in the Pennsylvania facility.

sextupole magnet

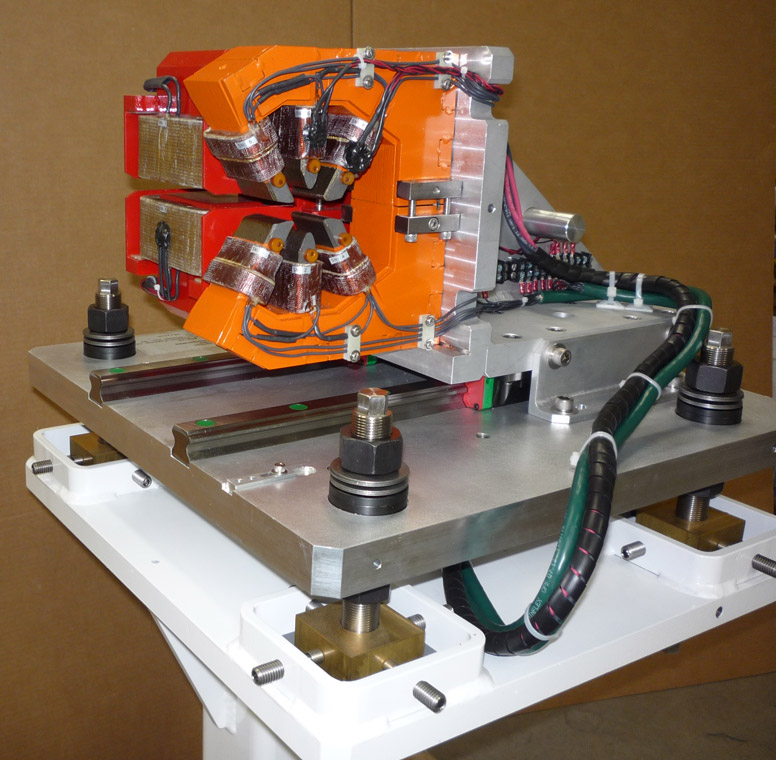

2. Dipole/Sextupole Magnet

This is a special air cooled Dipole/Sextupole magnet used to steer and focus particle accelerator beams in research facilities.

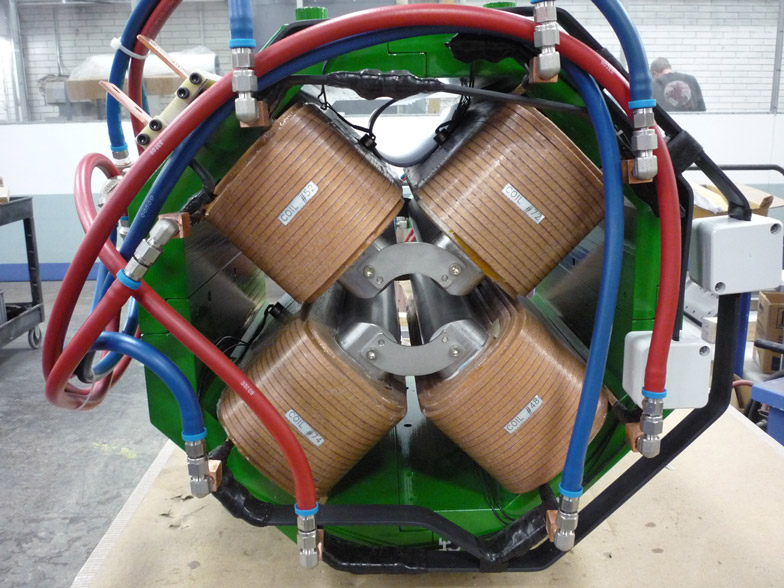

water-cooled quadrupole magnet

3. Water Cooled Quadrupole Magnet

This is a water cooled Quadrupole magnet used to focus particle accelerator beam directions in a research laboratory.

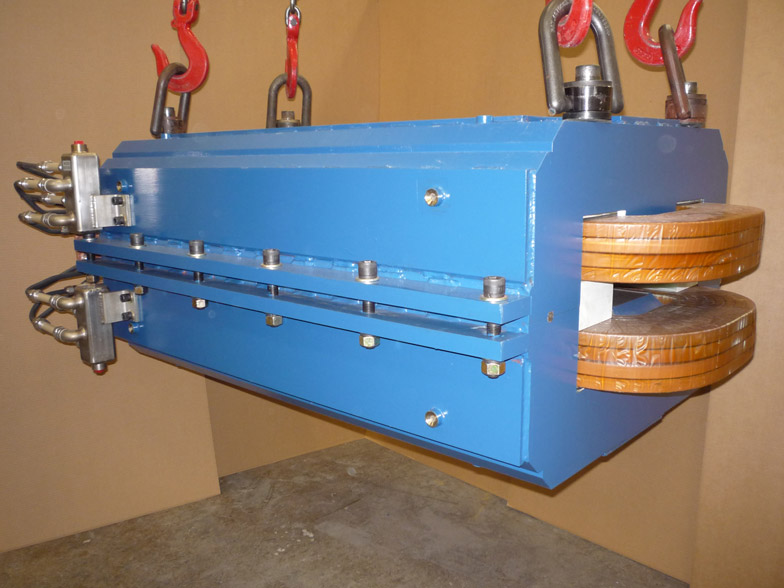

water-cooled dipole magnet

4. Water Cooled Dipole Magnet

This is a large water cooled Dipole magnet used to bend a particle accelerator beams in a research laboratory.

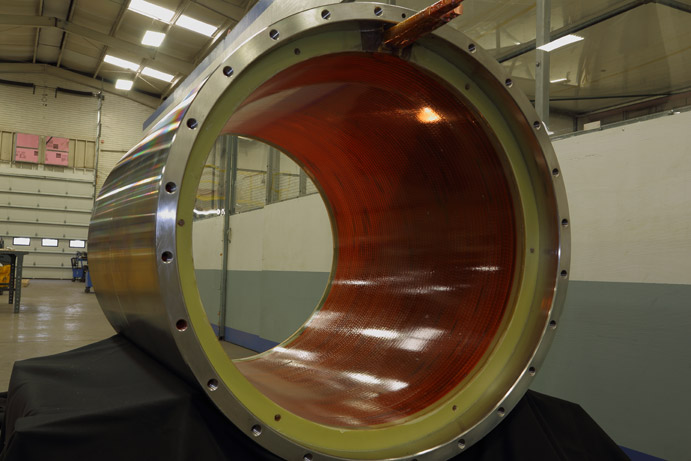

solenoid coil

5. Resistive Solenoid Coil

This is a 100 Tesla resistive solenoid coil used in a research facility.

superconducting magnet system

1. Liquid Cryogen-Free Superconducting Magnet System

A unique cryogen-free superconducting split-pair magnet system used for magnetic annealing applications in the semiconductor industry. Each superconducting coil half is a complete independent unit, conduction-cooled by a 4 Kelvin two-stage Gifford-McMahon (GM) cryocooler. The system also incorporates high-temperature superconductors (HTS), bismuth-based tapes for low thermal loss. The central magnetic field region is enhanced and shaped by external iron poles.

sextupole and trim quadrupole magnets

2. Sextupole and Trim Quadrupole Magnets, Brookhaven National Lab, RHIC Project

Everson Tesla fabricated 400 sextupoles and trim quadrupoles for the Relativistic Heavy Ion Collider (RHIC) in 1994 and 1995 for Brookhaven National Laboratory.

superconducting cryogenic system

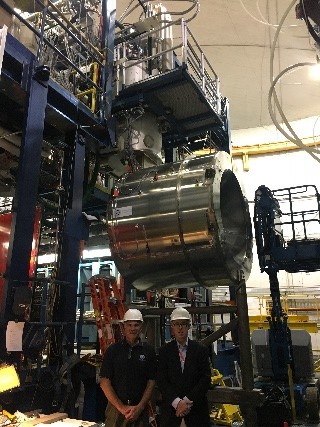

3. Superconducting Magnet and Cryogenic System

A high-field superconducting magnet along with a variable low-temperature cryostat housed in a liquid nitrogen shielded liquid helium dewar.

superconducting split-pair magnet system

4. Max Plank Institute - Germany

A superconducting split-pair magnet system used for magnetic guiding of an electron beam for scientific research.

resistive medical magnet

1. Medical Bending Magnet

Manufactured by Everson Tesla Inc used in cancer treatment equipment. It consists of water cooled foil wound coils along with additional trim coils used for fine tuning of the cancer treatment beam positions.

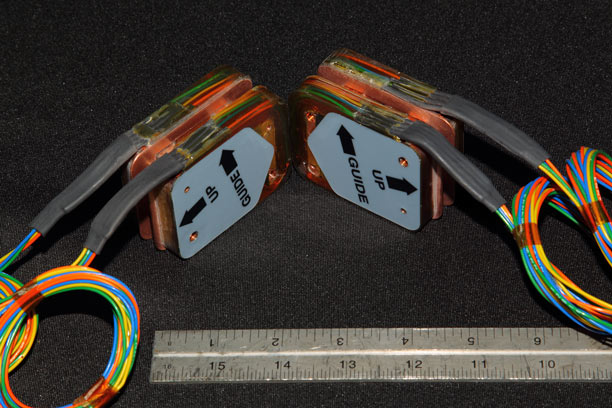

steering magnet for cancer treatment

2. Electromagnetic Resistive Medical Magnet

Small steering magnet used in cancer treatment equipment. Coil was entirely manufactured in Everson Tesla's Pennsylvania facility.

AC traction motors

1. Baltimore AC Traction Motors

Everson Tesla Incorporated teamed with an OEM manufacturer and built 116 plus traction motors used on light railed vehicles that operate from downtown Baltimore to BWI airport.

AC stator coils

2. AC Stator Coils Medium and High Voltage

Everson Tesla Incorporated fabricates both medium and high voltage stators used in transportation and power generation. Turn and ground insulation temperature varies from Class "F" to Class "H" for impregnated and unimpregnated coils.

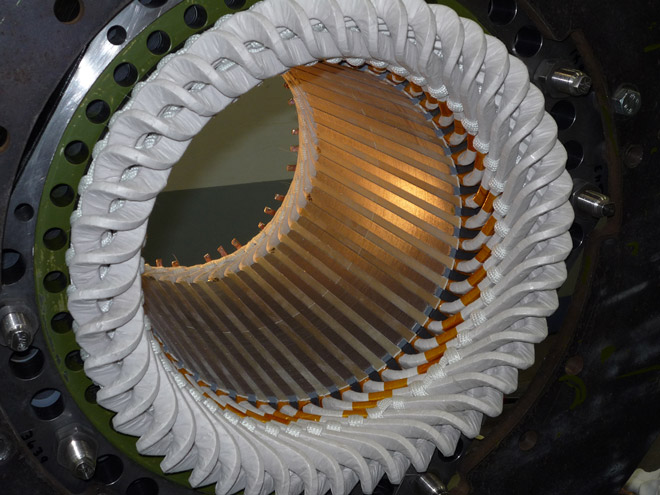

stator traction motor for light rail

3. Stator for a Traction Motor

This is a stator for a traction motor assembled and wound at Everson Tesla used in light rail applications.

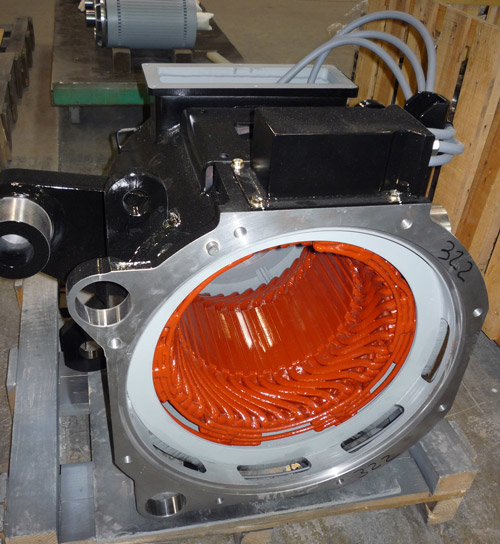

traction motor housing

4. Traction Motor Housing/Stator Assembly

This is a larger traction motor housing/stator assembly used in the rail industry.

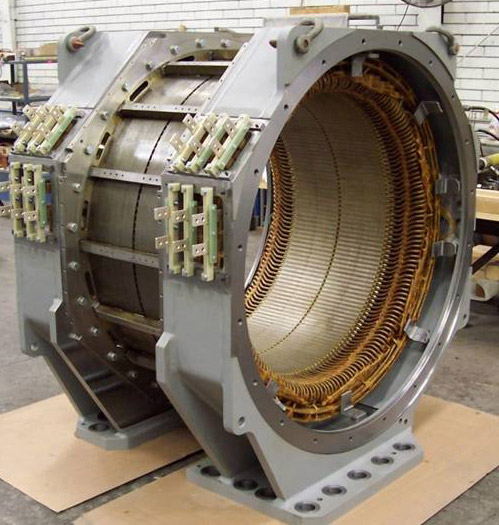

stator assembly commercial hybrid motor

5. Large Stator Assembly

This is a very large stator assembly used in a commercial hybrid motor application. The entire stator assembly was performed on site as well as most component manufacturing.
